Air Transporter

Driven & Guided

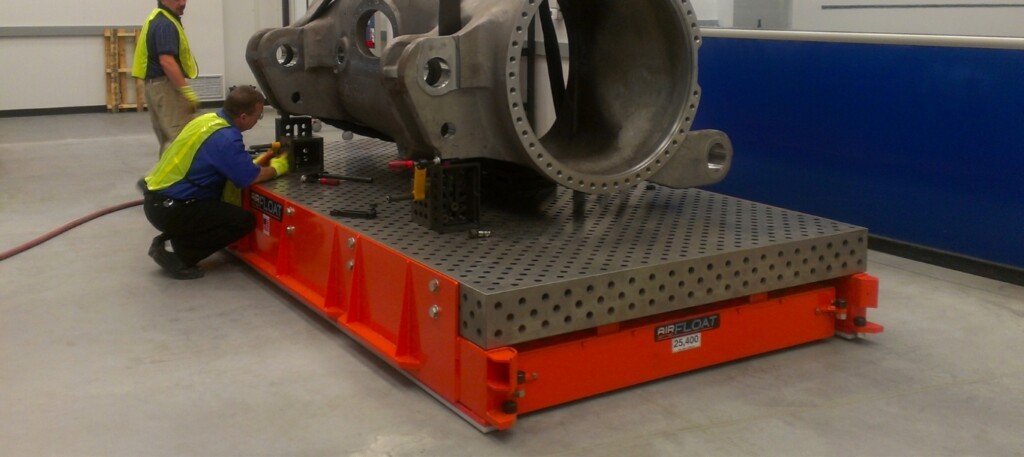

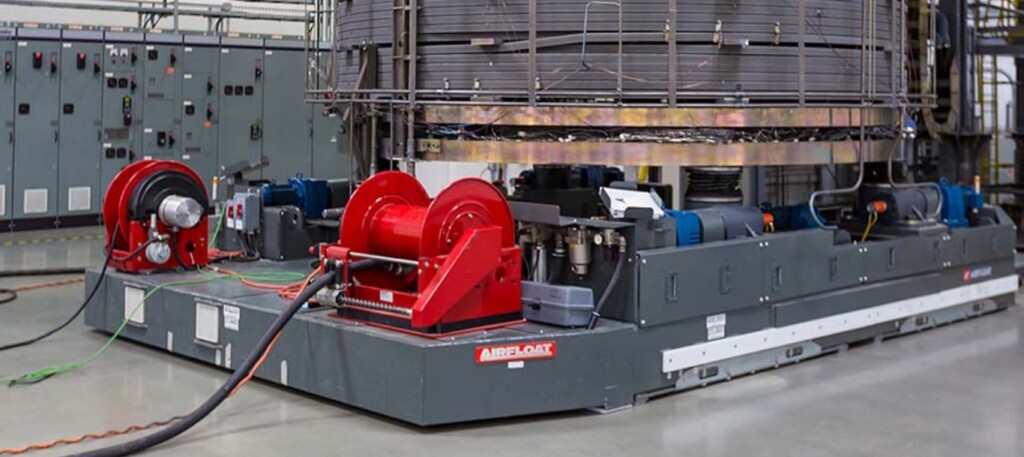

Air Transporters combine the power of air caster technology with on-board drives and AGV capability. Efficiently move pallets or loads up to 200,000 lbs. with minimal effort.
Air Transporters combine the power of air caster technology with on-board drives and AGV capability. Efficiently move pallets or loads up to 200,000 lbs. with minimal effort.
slider-left-arrow
slider-left-arrow
Specs & Sizing
Features
Video Library

Air Transporter

Air Caster Transporters are our largest air caster transportation system. By utilizing these Transporters, we’ve helped companies move trains, superconducting magnets, and massive engines around manufacturing facilities. The Transporters can be fitted with AGV technology to create the ultimate heavy load transportation system for automated facilities and assembly lines. With load capacities up to hundreds of thousands of pounds - it can handle whatever you throw at it.
View All Air Transporter Resources
case study image

Case Study

Custom Airfloat Transporter Helps Engine Rebuilt Center Move 28,000 lb. Engines
Read Case Study
case study image

Case Study

How Air Caster Transporters Increased GE’s Production By 29%
Read Case Study
45,000 Lbs
80,000 Lbs
120,000 Lbs
200,000 Lbs
Common Options
Measurement Units
Model No.
Model No.
Capacity (lbs)
Capacity (kgs)
Length (in)
Length (mm)
Width (in)
Width (mm)
Height (in)
Height (mm)
Average Flow (cfm)
Average Flow (l/s)
Pressure Req'd (psi)
Pressure Req'd (mpa)
Supply Line Size (in)
Supply Line Size (in)
Minimum Lift (in)
Minimum Lift (mm)
Model No.
Model No.
AF070-0045
AF070-0045
Capacity (lbs)
Capacity (kgs)
45,000
20,455
Length (in)
Length (mm)
96
2438
Width (in)
Width (mm)
96
2438
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
66
31.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
3/4"
3/4"
Minimum Lift (in)
Minimum Lift (mm)
5/8"
16
Model No.
Model No.
AF070-0185
AF070-0185
Capacity (lbs)
Capacity (kgs)
45,000
20,455
Length (in)
Length (mm)
192
3658
Width (in)
Width (mm)
144
4877
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
66
31.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
3/4"
3/4"
Minimum Lift (in)
Minimum Lift (mm)
5/8"
16
Model No.
Model No.
AF070-0165
AF070-0165
Capacity (lbs)
Capacity (kgs)
45,000
20,455
Length (in)
Length (mm)
144
3658
Width (in)
Width (mm)
144
3658
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
66
31.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
3/4"
3/4"
Minimum Lift (in)
Minimum Lift (mm)
5/8"
16
Model No.
Model No.
AF070-0115
AF070-0115
Capacity (lbs)
Capacity (kgs)
45,000
20,455
Length (in)
Length (mm)
144
3048
Width (in)
Width (mm)
120
3658
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
66
31.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
3/4"
3/4"
Minimum Lift (in)
Minimum Lift (mm)
5/8"
16
Model No.
Model No.
AF070-0065
AF070-0065
Capacity (lbs)
Capacity (kgs)
45,000
20,455
Length (in)
Length (mm)
144
2438
Width (in)
Width (mm)
96
3658
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
66
31.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
3/4"
3/4"
Minimum Lift (in)
Minimum Lift (mm)
5/8"
16
80,000 Lbs
Measurement Units
Model No.
Model No.
Capacity (lbs)
Capacity (kgs)
Length (in)
Length (mm)
Width (in)
Width (mm)
Height (in)
Height (mm)
Average Flow (cfm)
Average Flow (l/s)
Pressure Req'd (psi)
Pressure Req'd (mpa)
Supply Line Size (in)
Supply Line Size (in)
Minimum Lift (in)
Minimum Lift (mm)
Model No.
Model No.
AF071-192144
AF071-192144
Capacity (lbs)
Capacity (kgs)
80,000
36,364
Length (in)
Length (mm)
192
3658
Width (in)
Width (mm)
144
4877
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
85
40.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
3/4"
3/4"
Minimum Lift (in)
Minimum Lift (mm)
5/8"
16
Model No.
Model No.
AF071-144144
AF071-144144
Capacity (lbs)
Capacity (kgs)
80,000
36,364
Length (in)
Length (mm)
144
3658
Width (in)
Width (mm)
144
3658
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
85
40.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
3/4"
3/4"
Minimum Lift (in)
Minimum Lift (mm)
5/8"
16
Model No.
Model No.
AF071-144120
AF071-144120
Capacity (lbs)
Capacity (kgs)
80,000
36,364
Length (in)
Length (mm)
144
3048
Width (in)
Width (mm)
120
3658
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
85
40.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
3/4"
3/4"
Minimum Lift (in)
Minimum Lift (mm)
5/8"
16
Model No.
Model No.
AF071-144096
AF071-144096
Capacity (lbs)
Capacity (kgs)
80,000
36,364
Length (in)
Length (mm)
144
2438
Width (in)
Width (mm)
96
3658
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
85
40.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
3/4"
3/4"
Minimum Lift (in)
Minimum Lift (mm)
5/8"
16
Model No.
Model No.
AF071-096096
AF071-096096
Capacity (lbs)
Capacity (kgs)
80,000
36,364
Length (in)
Length (mm)
96
2438
Width (in)
Width (mm)
96
2438
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
85
40.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
3/4"
3/4"
Minimum Lift (in)
Minimum Lift (mm)
5/8"
16
120,000 Lbs
Measurement Units
Model No.
Model No.
Capacity (lbs)
Capacity (kgs)
Length (in)
Length (mm)
Width (in)
Width (mm)
Height (in)
Height (mm)
Average Flow (cfm)
Average Flow (l/s)
Pressure Req'd (psi)
Pressure Req'd (mpa)
Supply Line Size (in)
Supply Line Size (in)
Minimum Lift (in)
Minimum Lift (mm)
Model No.
Model No.
AF072-192192
AF072-192192
Capacity (lbs)
Capacity (kgs)
120,000
54,546
Length (in)
Length (mm)
192
4877
Width (in)
Width (mm)
192
4877
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
100
47.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
3/4"
3/4"
Minimum Lift (in)
Minimum Lift (mm)
3/4"
19
Model No.
Model No.
AF072-192168
AF072-192168
Capacity (lbs)
Capacity (kgs)
120,000
54,546
Length (in)
Length (mm)
192
4267
Width (in)
Width (mm)
168
4877
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
100
47.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
3/4"
3/4"
Minimum Lift (in)
Minimum Lift (mm)
3/4"
19
Model No.
Model No.
AF072-192144
AF072-192144
Capacity (lbs)
Capacity (kgs)
120,000
54,546
Length (in)
Length (mm)
192
3658
Width (in)
Width (mm)
144
4877
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
100
47.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
3/4"
3/4"
Minimum Lift (in)
Minimum Lift (mm)
3/4"
19
Model No.
Model No.
AF072-144144
AF072-144144
Capacity (lbs)
Capacity (kgs)
120,000
54,546
Length (in)
Length (mm)
144
3658
Width (in)
Width (mm)
144
3658
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
100
47.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
3/4"
3/4"
Minimum Lift (in)
Minimum Lift (mm)
3/4"
19
Model No.
Model No.
AF072-192120
AF072-192120
Capacity (lbs)
Capacity (kgs)
120,000
54,546
Length (in)
Length (mm)
192
3048
Width (in)
Width (mm)
120
4877
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
100
47.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
3/4"
3/4"
Minimum Lift (in)
Minimum Lift (mm)
3/4"
19
Model No.
Model No.
AF070-144120
AF070-144120
Capacity (lbs)
Capacity (kgs)
120,000
54,546
Length (in)
Length (mm)
144
3048
Width (in)
Width (mm)
120
3658
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
100
47.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
3/4"
3/4"
Minimum Lift (in)
Minimum Lift (mm)
3/4"
19
200,000 Lbs
Measurement Units
Model No.
Model No.
Capacity (lbs)
Capacity (kgs)
Length (in)
Length (mm)
Width (in)
Width (mm)
Height (in)
Height (mm)
Average Flow (cfm)
Average Flow (l/s)
Pressure Req'd (psi)
Pressure Req'd (mpa)
Supply Line Size (in)
Supply Line Size (in)
Minimum Lift (in)
Minimum Lift (mm)
Model No.
Model No.
AF073-192192
AF073-192192
Capacity (lbs)
Capacity (kgs)
200,000
90,909
Length (in)
Length (mm)
192
4877
Width (in)
Width (mm)
192
4877
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
140
66.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
1"
1"
Minimum Lift (in)
Minimum Lift (mm)
3/4"
19
Model No.
Model No.
AF073-192168
AF073-192168
Capacity (lbs)
Capacity (kgs)
200,000
90,909
Length (in)
Length (mm)
192
4267
Width (in)
Width (mm)
168
4877
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
140
66.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
1"
1"
Minimum Lift (in)
Minimum Lift (mm)
3/4"
19
Model No.
Model No.
AF073-192144
AF073-192144
Capacity (lbs)
Capacity (kgs)
200,000
90,909
Length (in)
Length (mm)
192
3658
Width (in)
Width (mm)
144
4877
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
140
66.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
1"
1"
Minimum Lift (in)
Minimum Lift (mm)
3/4"
19
Model No.
Model No.
AF073-144144
AF073-144144
Capacity (lbs)
Capacity (kgs)
200,000
90,909
Length (in)
Length (mm)
144
3658
Width (in)
Width (mm)
144
3658
Height (in)
Height (mm)
10
254.0
Average Flow (cfm)
Average Flow (l/s)
140
66.0
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
1.0
Supply Line Size (in)
Supply Line Size (in)
1"
1"
Minimum Lift (in)
Minimum Lift (mm)
3/4"
19
Common Options
Measurement Units
Model No.
Model No.
Description
Description
Model No.
Model No.
AF5100-0010
AF5100-0010
Description
Description
Center Pivot (for improved rotation of transporter)
Center Pivot (for improved rotation of transporter)
Model No.
Model No.
AF5030-0010
AF5030-0010
Description
Description
UHMW Debris Skirt
UHMW Debris Skirt
Model No.
Model No.
AF5020-0040
AF5020-0040
Description
Description
Radio Frequency Controller - Quad Drive
Radio Frequency Controller - Quad Drive
Model No.
Model No.
AF5020-0030
AF5020-0030
Description
Description
Radio Frequency Controller - Dual Drive
Radio Frequency Controller - Dual Drive
Model No.
Model No.
AF5020-0020
AF5020-0020
Description
Description
Pneumatic Pendandt Controller - Quad Drive
Pneumatic Pendandt Controller - Quad Drive
Model No.
Model No.
AF5020-0010
AF5020-0010
Description
Description
Pneumatic Pendandt Controller - Dual Drive
Pneumatic Pendandt Controller - Dual Drive
Model No.
Model No.
AF5010-0040
AF5010-0040
Description
Description
Quad Drive - 200,000 lbs. Capacity
Quad Drive - 200,000 lbs. Capacity
Model No.
Model No.
AF5010-0030
AF5010-0030
Description
Description
Quad Drive - 120,000 lbs. Capacity or Less
Quad Drive - 120,000 lbs. Capacity or Less
Model No.
Model No.
AF5010-0020
AF5010-0020
Description
Description
Dual Drive - 200,000 lbs. Capacity
Dual Drive - 200,000 lbs. Capacity
Model No.
Model No.
AF5010-0010
AF5010-0010
Description
Description
Dual Drive - 120,000 lbs. Capacity or Less
Dual Drive - 120,000 lbs. Capacity or Less
Want to see Air Transporters in Action?
View our Application Library

Features

Where Cranes
Can't Go
Not only can relying on cranes be dangerous to workers, but they’re fixed with how far they can carry loads. Air Caster Transporters are flexible in application and can be used to move loads far distances on a thin film of air, eliminated the need for overhead cranes or wheels that can potentially cut concrete and ruin your floors.
Easy
Maintenance
Uh oh - the unthinkable has happened. The Air Caster under your Air Caster Transporter has ripped due to some debris on the floor. We’ve designed our Transporters to be easy to repair with slide-out trays to replace the Air Caster without removing the load - leading to minimal downtime and a quick turnaround to get back to moving heavy loads.
Drive
Wheel
Air Caster technology is omnidirectional, meaning wherever the operator wants the load to go - it can go there. Optional Drive Wheels featured on our Transporters keep the load moving in the exact intended direction, or the Transporter can be steered via AGV control.

Air Transporter Video Library



The Technology of Air

We exist to create material handling solutions for moving and positioning heavy and difficult to position loads with low friction, omnidirectional movement. The Air Caster is a pneumatic device that forms a lubricating film of air between the load and floor surface, similar in principle to a hovercraft or an air hockey table. We provide material handling products and solutions for heavy loads when frictionless, omnidirectional movement is critical.

Related Resources

Learn more about Air Caster technology and how Airfloat works with our partners to develop solutions that save time and optimize budgets.
View Resource Index
case study image

Case Study

Bombardier uses Airfloat to Modernize their Commercial Jet Manufacturing Facility
Read Case Study
case study image

Case Study

Kentucky Trailer Uses Airfloat to Maximize Their Manufacturing Floor Space
Read Case Study
Frequent Questions
Will air casters work on my floor?

Many people believe a perfect floor, polished to a mirror finish, is required in order to use air caster technology. Most Airfloat equipment is designed to operate on machine-troweled concrete. However, the floor does need to be reasonably flat and level. Call 800-888-0018 today to speak with an application engineer to discuss if your floors are up to par for air caster technology to function efficiently.

What are the air requirements?

Most plant air systems and adequate pressure (usually over 80 psi) for air caster technology. However, make sure the airflow is strong enough for the equipment you’re looking into. The required air consumption for the efficient operation of air casters is 3 SCFM per foot of air bearing perimeter.

In what sizes are Airfloat air skids available?

Airfloat Air Skids range in size from 10 inches to 54 inches, with single-skid capacity from 500 pounds to 60,000 pounds per skid. Custom sizes are also available.

1 (800) 888-0018 CONTACT SUPPORT i
