Air Skid Rigging Kit

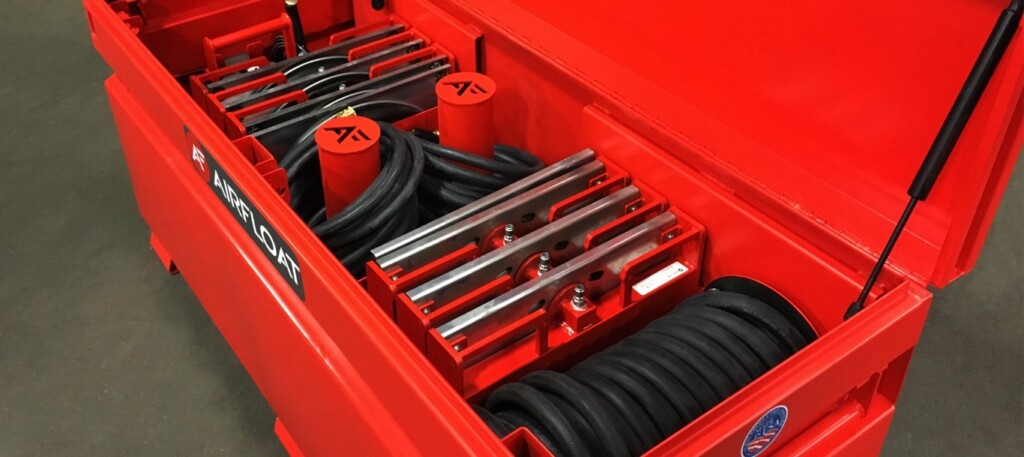

The Air Skid Rigging Kit was designed for end-users needing an easy-to-transport Air Skid solution containing everything needed for operation, including spare parts. The Rigging Kit is contained in a 5’ x 2’ Knack Box fitted with custom inserts, making it easy to load and unload. The Rigging Kit is meant for quick deployment at job sites and will fit in the bed of most pick-up trucks for hauling between job sites.
View Rigging Kit Resources
video image video image

Video

Rigging Kit Demo
View video
video image video image

Video

Moving 80,000 Boilers by Hand with Air Skids
View video
Rigging Kits
Measurement Units
Model No.
Model No.
Capacity (lbs)
Capacity (kgs)
Length (in)
Length (mm)
Width (in)
Width (mm)
Height (in)
Height (mm)
Average Flow (cfm)
Average Flow (l/s)
Pressure Req'd (psi)
Pressure Req'd (mpa)
Supply Line Size (in)
Supply Line Size (in)
Minimum Lift (in)
Minimum Lift (mm)
Skid Quantity
Skid Quantity
Model No.
Model No.
AF01124-6
AF01124-6
Capacity (lbs)
Capacity (kgs)
75,000
34,000
Length (in)
Length (mm)
60
1524
Width (in)
Width (mm)
30
610
Height (in)
Height (mm)
36
716
Average Flow (cfm)
Average Flow (l/s)
132
63
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
Supply Line Size (in)
Supply Line Size (in)
1
1
Minimum Lift (in)
Minimum Lift (mm)
3/8"
10
Skid Quantity
Skid Quantity
6
6
Model No.
Model No.
AF01112-6
AF01112-6
Capacity (lbs)
Capacity (kgs)
18,000
8,182
Length (in)
Length (mm)
60
1524
Width (in)
Width (mm)
24
610
Height (in)
Height (mm)
28
718
Average Flow (cfm)
Average Flow (l/s)
66
31
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
Supply Line Size (in)
Supply Line Size (in)
3/4
3/4
Minimum Lift (in)
Minimum Lift (mm)
1/4"
6
Skid Quantity
Skid Quantity
6
6
Model No.
Model No.
AF01117-6
AF01117-6
Capacity (lbs)
Capacity (kgs)
37,500
17,046
Length (in)
Length (mm)
60
1524
Width (in)
Width (mm)
24
610
Height (in)
Height (mm)
28
718
Average Flow (cfm)
Average Flow (l/s)
94
45
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
Supply Line Size (in)
Supply Line Size (in)
3/4
3/4
Minimum Lift (in)
Minimum Lift (mm)
3/8"
10
Skid Quantity
Skid Quantity
6
6
Model No.
Model No.
AF01120-6
AF01120-6
Capacity (lbs)
Capacity (kgs)
49,500
22,453
Length (in)
Length (mm)
60
1524
Width (in)
Width (mm)
24
610
Height (in)
Height (mm)
28
718
Average Flow (cfm)
Average Flow (l/s)
108
51
Pressure Req'd (psi)
Pressure Req'd (mpa)
80
Supply Line Size (in)
Supply Line Size (in)
1
1
Minimum Lift (in)
Minimum Lift (mm)
3/8"
10
Skid Quantity
Skid Quantity
6
6
Want to see Air Platforms in Action?
View our Application Library
All-In-One
Solution

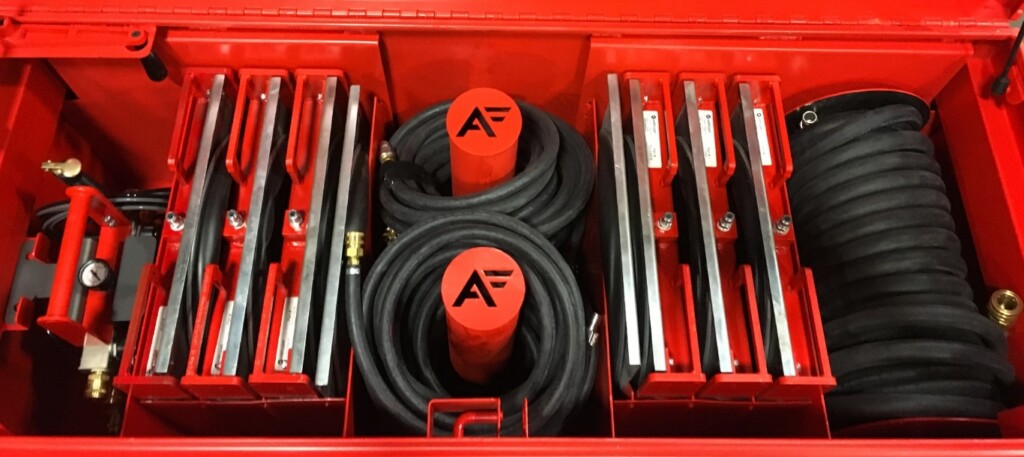

The Rigging Kit puts everything you need for air caster rigging jobs in one Knaack box. With room for six Air Skids, replacement air casters, and 85 ft. of hose, this thing makes sure everything is grouped together and ready to go.
Safe
Travel
The Knaack boxes keep your Skids and all of the extra goodies safe from the elements, allowing you to not worry about ruining the contents of the box and continue doing the job as rough as you want. As soon as you’re at the job site or you’re ready to utilize the Skids in your facility, bring ‘em out of the box and you know they’re the same as you put ‘em in.
Forklift
Compatible
The bottom of the Rigging Kit box has a built-in space to allow the box to be picked up via forklift and moved to the move site. Simply move the box, set it down, open it up, and set up your air skids and hoses. Next thing you know, you’re moving tens of thousands of pounds by hand.

Air Platform Video Library



The Technology of Air

We exist to create material handling solutions for moving and positioning heavy and difficult to position loads with low friction, omnidirectional movement. The Air Caster is a pneumatic device that forms a lubricating film of air between the load and floor surface, similar in principle to a hovercraft or an air hockey table. We provide material handling products and solutions for heavy loads when frictionless, omnidirectional movement is critical.
